Product Features
- Brand: KINUGAWA
- For car makes / model: Subaru
- Turbine Housing: 7cm, 8cm
- Compressor Wheel: Billet

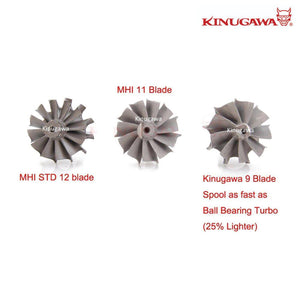

- Turbine Wheel: 9 Blades STS Wheel Inconel 713
Description
The factory turbocharger is feeling a little tired? Or if you are ready to make a little more power without going way over the top, then you will be pleased with the Kinugawa TD05H-20G Turbocharger. This is a great upgrade for those of you looking to make more power while maintaining great low to the mid-range response. This particular turbocharger is capable of producing up to 400 WHP on a healthy engine with excellent throttle response. This is a great option for street and track duties
Application
- 2002-2014 Subaru WRX
- 2004-2016 Subaru WRX STI vehicles
- 2004-2007 Subaru Forester
- It can replace TD04L WRX turbo, for IHI VF30, vf35 ... turbo directly without modification
CHRA Size
- TD05-20G Dual Ceramic Ball Bearing
Wheels Spec
- Compressor wheel: 52.3 / 68 mm
- Turbine wheel: 49 / 56 mm 9 Blades STS
Compressor Housing AR60
- Compressor inlet : 3" hose coupler
- Compressor outlet: 2.0" hose coupler
Turbine Housing Hi-Ni Thermal Resistant
- AR.49 / 7cm, AR.57 / 8cm, AR.73 10cm
Bearing Type
- Dual Ceramic Ball Bearing
Cooling Type
- Water and Oil Cooling System
Drive Pressure
- 1.0 bar is a default setup
- Available to 0.3bar, 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar, Please add a comment to your order if you must change it.
Boost / HP
- Horsepower: 350~450whp
- The Max boost level is limited: 2.8bar

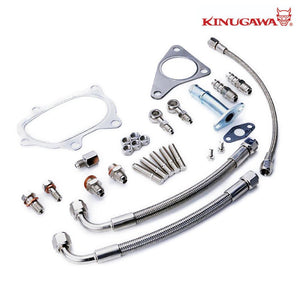

The set includes
- 1 x oil feed line kit
- 1 x water coolant feed and return line kit
- 1 x oil return pipe kit
- 1 x turbine inlet and outlet gasket set
- 5 x stud and nut set
Situation code
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Guarantee
-One year
