Application
- 2002-2014 Subaru WRX
- 2004-2016 Subaru WRX STI vehicles
- 2004-2007 Subaru Forester
- It can replace TD04L WRX turbo, for IHI VF30, vf35 ... turbo directly without modification
CHRA Size
-T67-25G
Wheels Spec

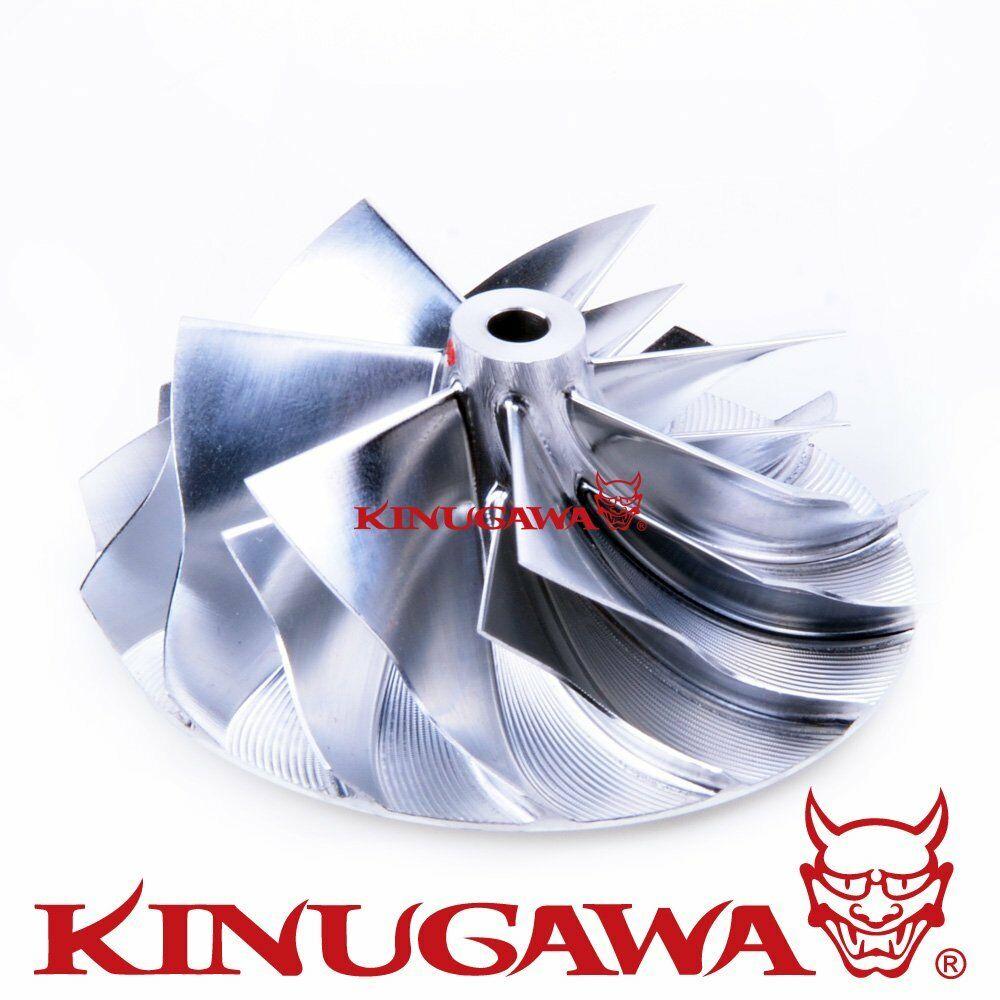

- Compressor wheel: 60.5 / 78.0 mm
- Turbine wheel: 61 / 54.1 mm (11 blades)
Compressor Housing
- AR.70
- Compressor inlet: 4 "
- Compressor outlet: 2.5 "

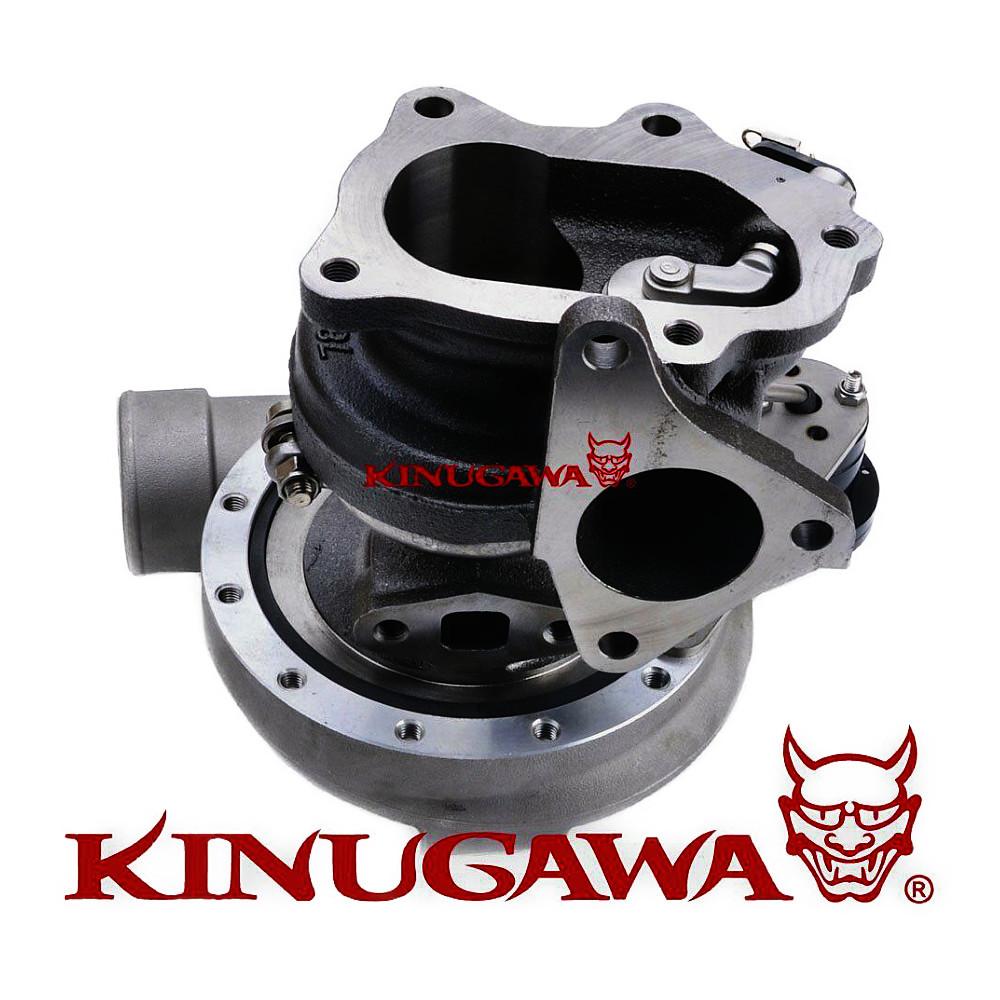

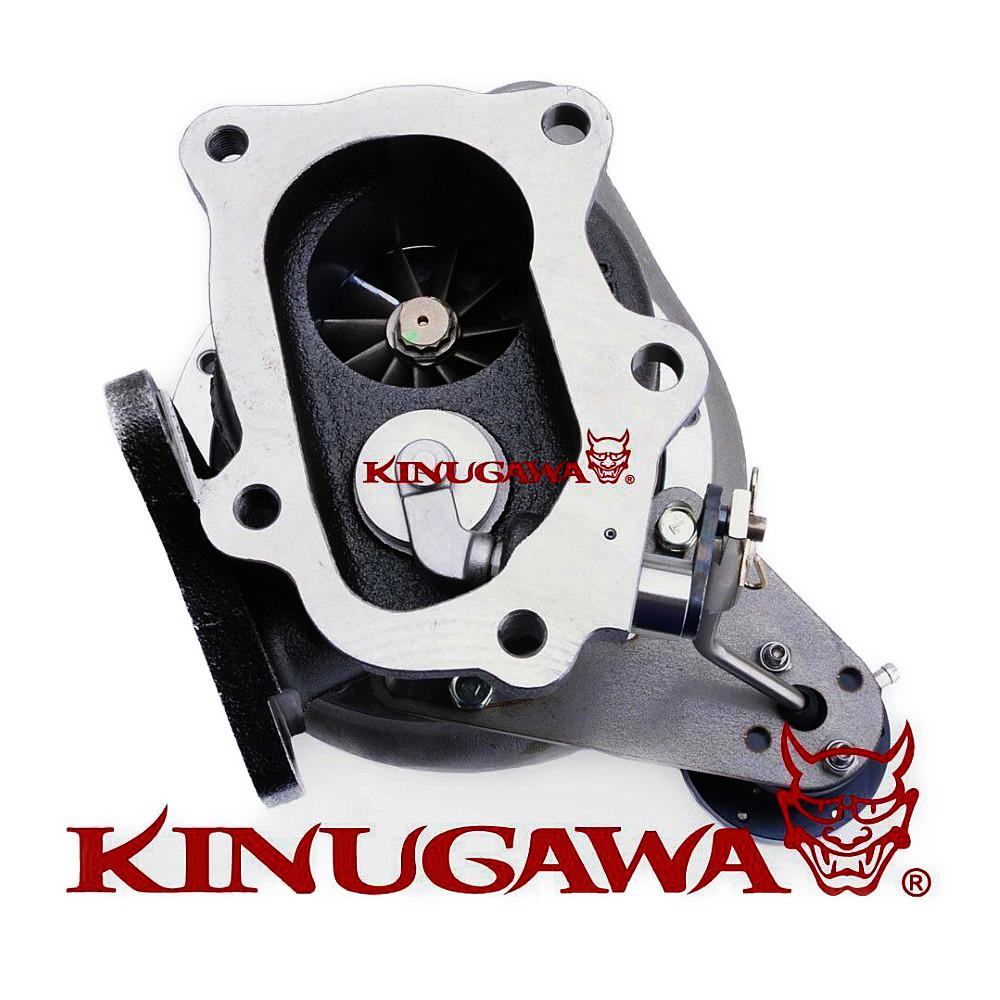

Turbines Housing
-For Subaru Standard flange type flange
Bearing Type
- Journal Bearing with 360-degree thrust bearing kit
Cooling Type
-Oil Cooling System
Drive Pressure
- 1.0bar The drive will go with the turbo.
-We have 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar drives, please add a comment to your order if you need to change it.

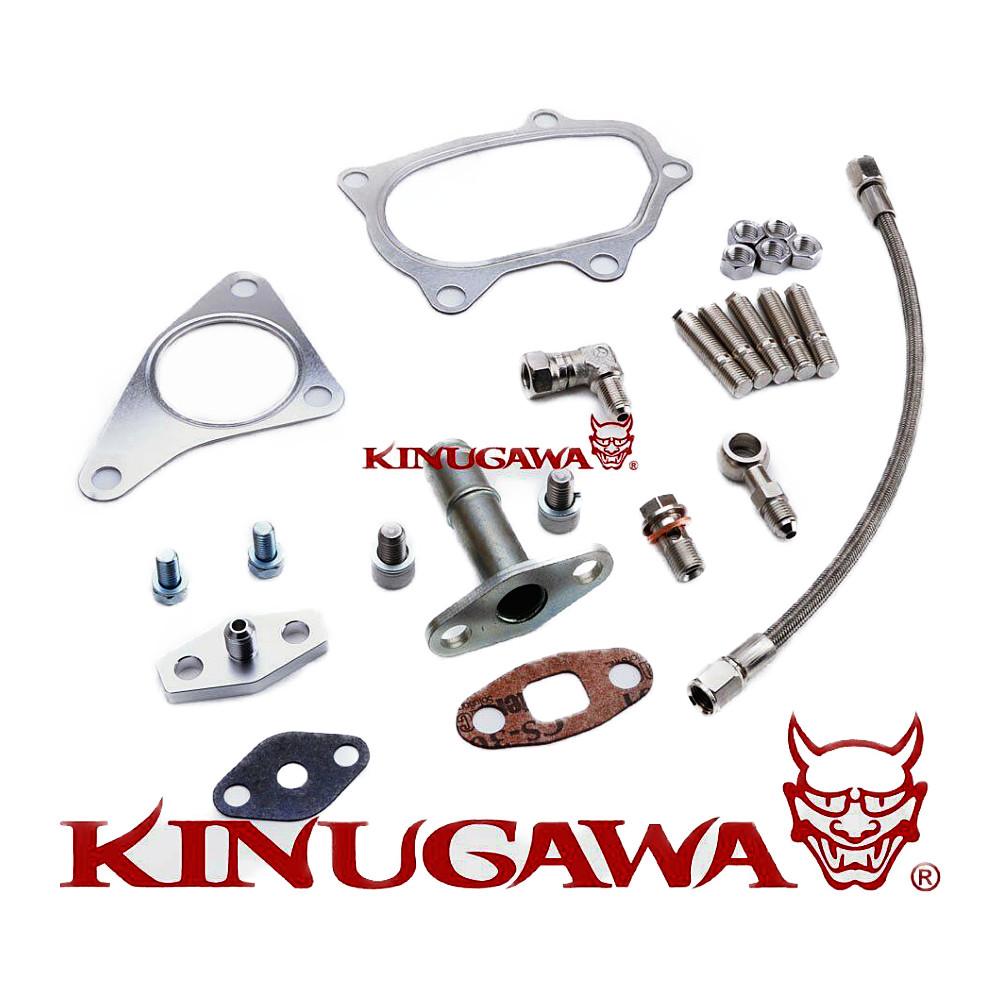

The set includes
- 1 x Oil supply set
- 1 x Return Oil Pipeline
- 1 x turbine inlet and outlet gasket
- 5 x stud and nut set
Situation
- Brand New
- Full balance from Schenk MBRS110 Germany
Provider
- Kinugawa Turbo Systems
Guarantee
-One year
