Product Features
- For car makes / model: Subaru WRX STi GC8 GDB
- Manufacturer: Kinugawa Turbo Systems

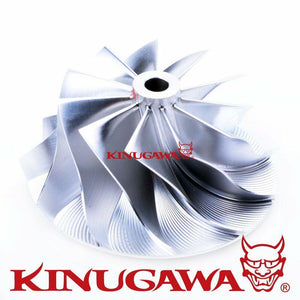

- Compressor Wheel: Billet Wheel

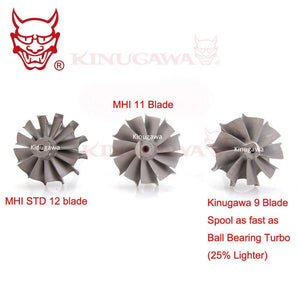

- Turbine Wheel: 9 Blades Wheel STS (High Flow)
- Horse Power: 420~450 WHP
Application
-For SUBARU 98 ~ 08 EJ20 EJ25 WRX TD04L turbocharger
-For SUBARU ~ now EJ20 EJ25 STI for IHI RHF55 RHF5HB Turbocharger.
-It can replace TD04L WRX turbo, for IHI VF30, vf35 ... turbo directly without modification
CHRA Size

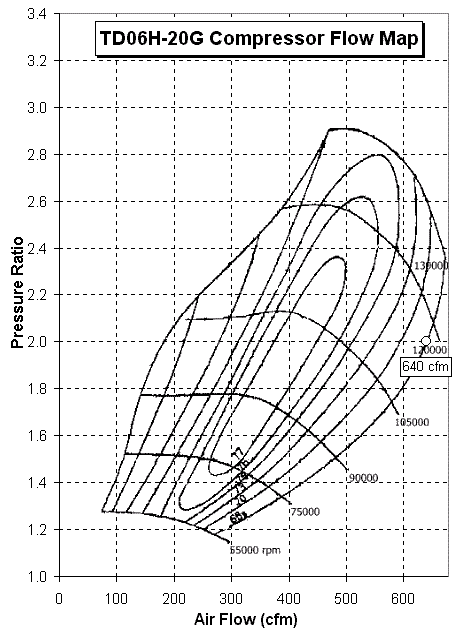

-TD06H-20G Dual Ceramic Ball Bearing
Wheels Spec
- Compressor wheel: 52.3 / 68.0 mm
- Turbine wheel: 58.8 /67.2 mm (9 blades)
Compressor Housing
- Compressor inlet: 2.25"
- Compressor outlet: 2.0"
Turbine Housing Hi-Ni Thermal Resistant
- AR.49 / 7cm, AR.57 / 8cm, AR.73 10cm
Bearing Type
- Ceramic Ball Bearing
Cooling Type
- Oil and Water Cooling System
Drive Pressure
- 1.0 bar default setting.
-We have 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar spring settings, Please add a comment to your order if you need to change it.

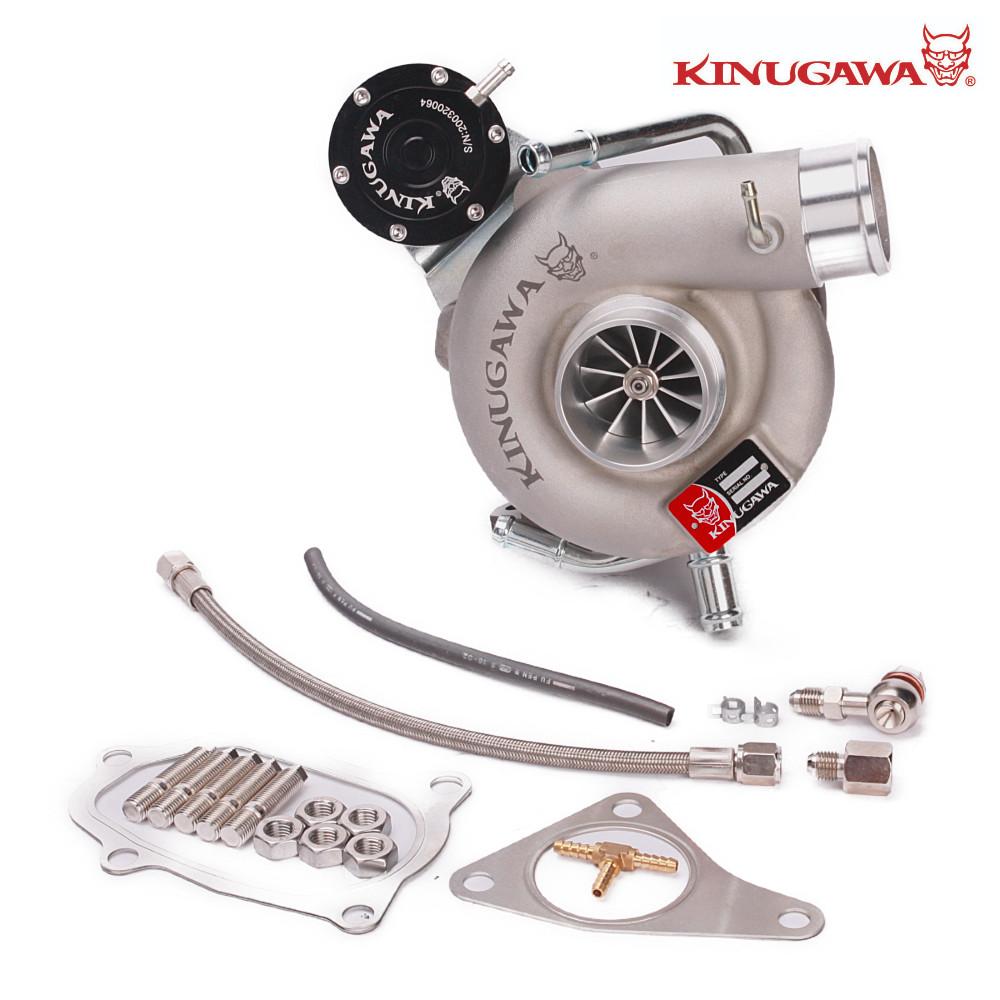

The set includes
-1 x Oil supply set
-1 x water supply and return pipe set
-1 x Return Oil Pipeline
-1 x turbine inlet and outlet gasket
-5 x Stud And Nut Set
-1 x Balance Report with Anti-Counterfeit Tag
Situation
-Brand New
-Full balance from SCHENK MBRS 110 Germany
Provider
-Kinugawa Turbo Systems
Guarantee
-One year
