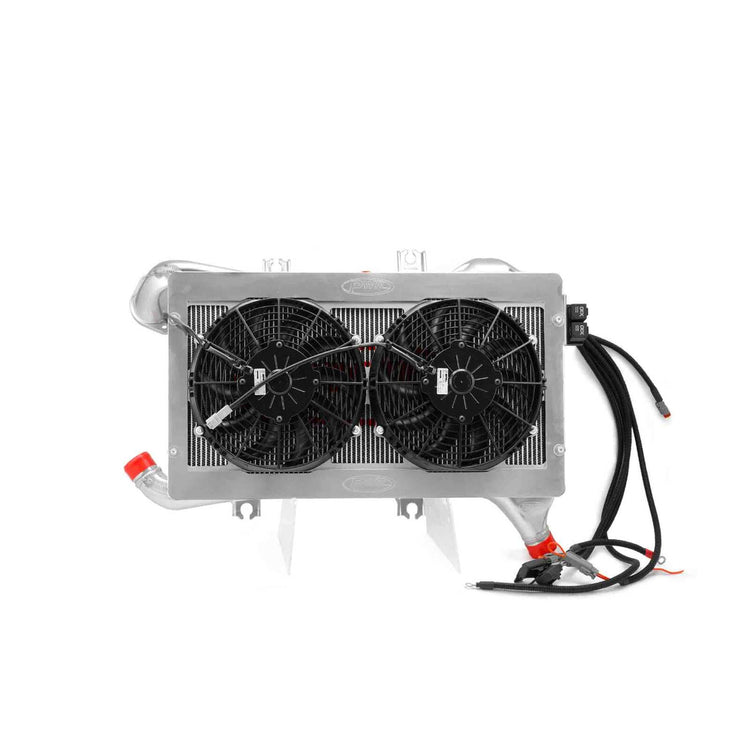

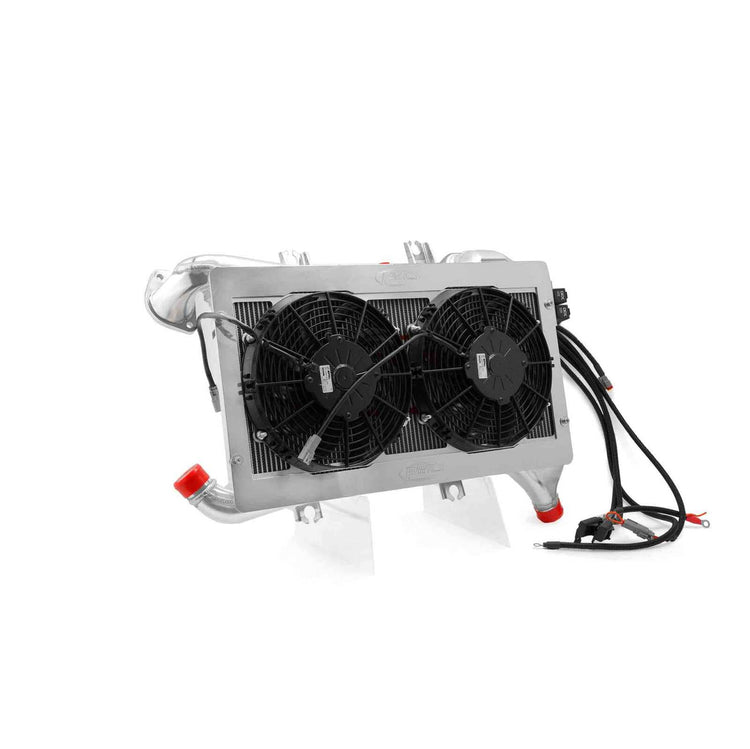

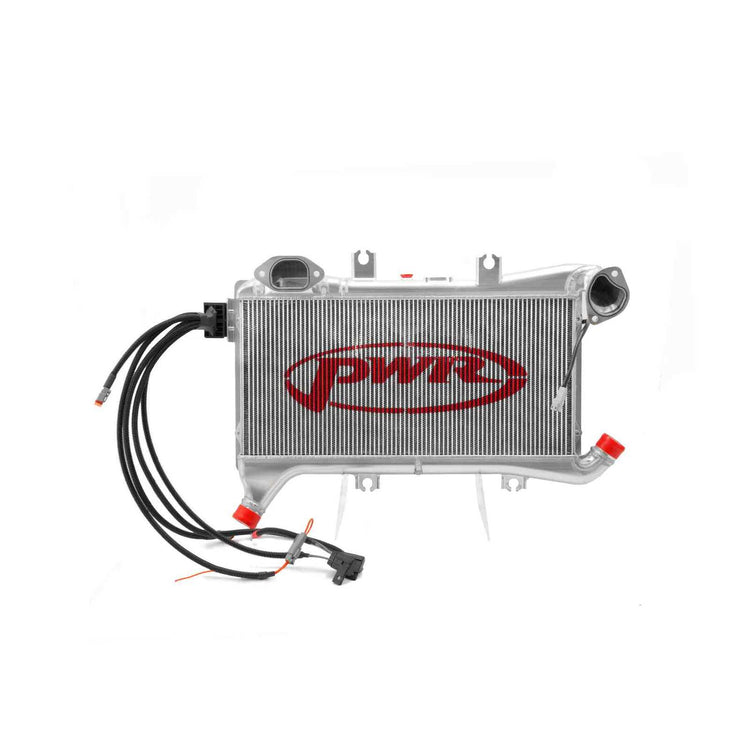

TOYOTA LANDCRUISER 200 Series Elite Billet Intercooler with Fan and Shroud Kit ***With factory engine cover mounts***

Toyota Landcruiser 200 Series 1VDFTV V8 TT Diesel (2008-Current) Elite Series Billet Intercooler with Fan & Shroud Kit * With factory engine cover mounts*

PRODUCT DETAILS

• Low-pressure drop Internally turbulated 55mm tube & fin core

• CNC machined Billet tanks for precise fitment and acceptance of OEM flanges and hoses

• Zero cutting, zero modifications to fit

• 200 AWHP & 502Nm torque achieved without tuning
• Twin thermo fan kit pushes airflow through the core at low driving speeds to overcome heat-soaking
• World-class TIG welding by our passionate fabricators
• Start of the art-controlled atmosphere brazing process

• Race and street-proven performance backed by comprehensive wind tunnel testing

• Race and street-proven performance backed by comprehensive dyno, wind tunnel testing & * CFD flow simulation
• Pressure tested and guaranteed
• 1 Year-manufactured warranty
• 100% Australian made

PWR manufacture the most efficient intercoolers in the world as used by the most elite motorsports categories. These charge air cooler assemblies including the core, are manufactured by hand in our state-of-the-art facilities on the Gold Coast. Intercoolers are made from high-grade aluminium incorporating an internally turbulated tube & fin configuration with a revolutionary louver fin design angle, which maximises the cooling efficiencies and disbursement of heat. With these characteristics, each PWR Intercooler will deliver the highest levels of quality, consistent durability, strength and performance exceeding the highest levels of customer expectation.

SPECIFICATIONS

• 55mm Light Weight Tube and Fin Core

• Internal Turbulator

• Billet Tanks

• OEM Fit

• Direct Bolt-In

• Includes Twin Fan and Shroud Kit


WHAT'S INCLUDED

• 1 x Elite Series Billet Intercooler

• 1 x Fan and Shroud Kit

COMPATIBILITY

• TOYOTA Landcruiser 200 Series 1VDFTV V8 TT Diesel (2008 - Current)


PWR can custom-make to your requirements. Please let us know if you would like thermo fan mounts, fan shrouds, temp switch bosses, in-tank auto cooler, external trans cooler mounts, ground welds, machined logo etching or any other custom configuration. Call us today on 07 55 471 600 or email info@pwr.com.au for a quote.
