This is a total replacement for the factory oil line and filter that is notoriously known for causing turbo failures. The factory filter near the oil pressure sensor is prone to blocking, and the hardline is prone to clogging up with burnt oil. Replaces the factory line with a new oil filter line located in front of the engine that can be easily pulled apart and cleaned.
PRODUCTĀ APPLICATION
Ford Territory SX SY BARRA 245T turbo engine with Garrett GT3576R GT3582R GTX3584RS turbo.
PRODUCT FEATURESĀ
This product utilizes a 400 mesh "bucket" conical-shaped screen filter element which has more surface area to filter than competitorsā āflatā styled filters. The conical-style filter provides more area for trapping actual debris and debris particles will move down to the bottom outer edge of the filter which leaves the rest of the filter free from debris build up. So, will not compromising the screenās flow rate nor negatively affects the oil pressure as it enters the feed line.
PRODUCT MATERIAL- Oil feed line: Pre-crimped PTFE Teflon braided stainless steel
- Oil drain hose: NBR (Nitrile Butadiene Rubber)
- Flange: 6061-T6 aircraft aluminum
- Fitting: mild steel
- Gasket: Interface N-8092 Nonasbestos
- Bolts: High tensile class 8.8
- Filter housing & fitting: 6061-T6 aircraft aluminum
- Filter screen: Stainless steel
- O-Ring: Nitrile rubber N70(Black)ćVT75(Brown)
- -4 AN 1/4" Oil feed line

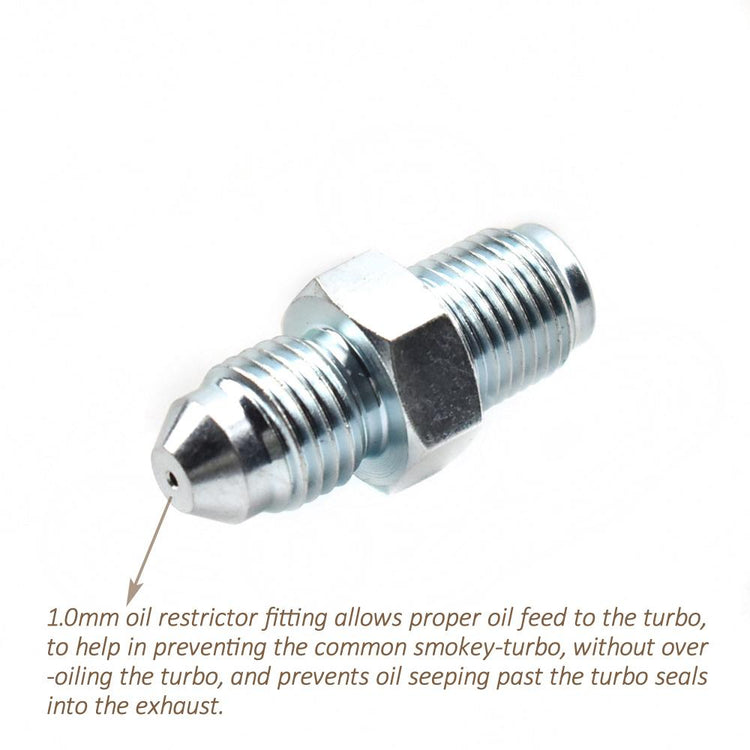

- -4 AN Oil feedĀ fitting (1.0mm restricted port)

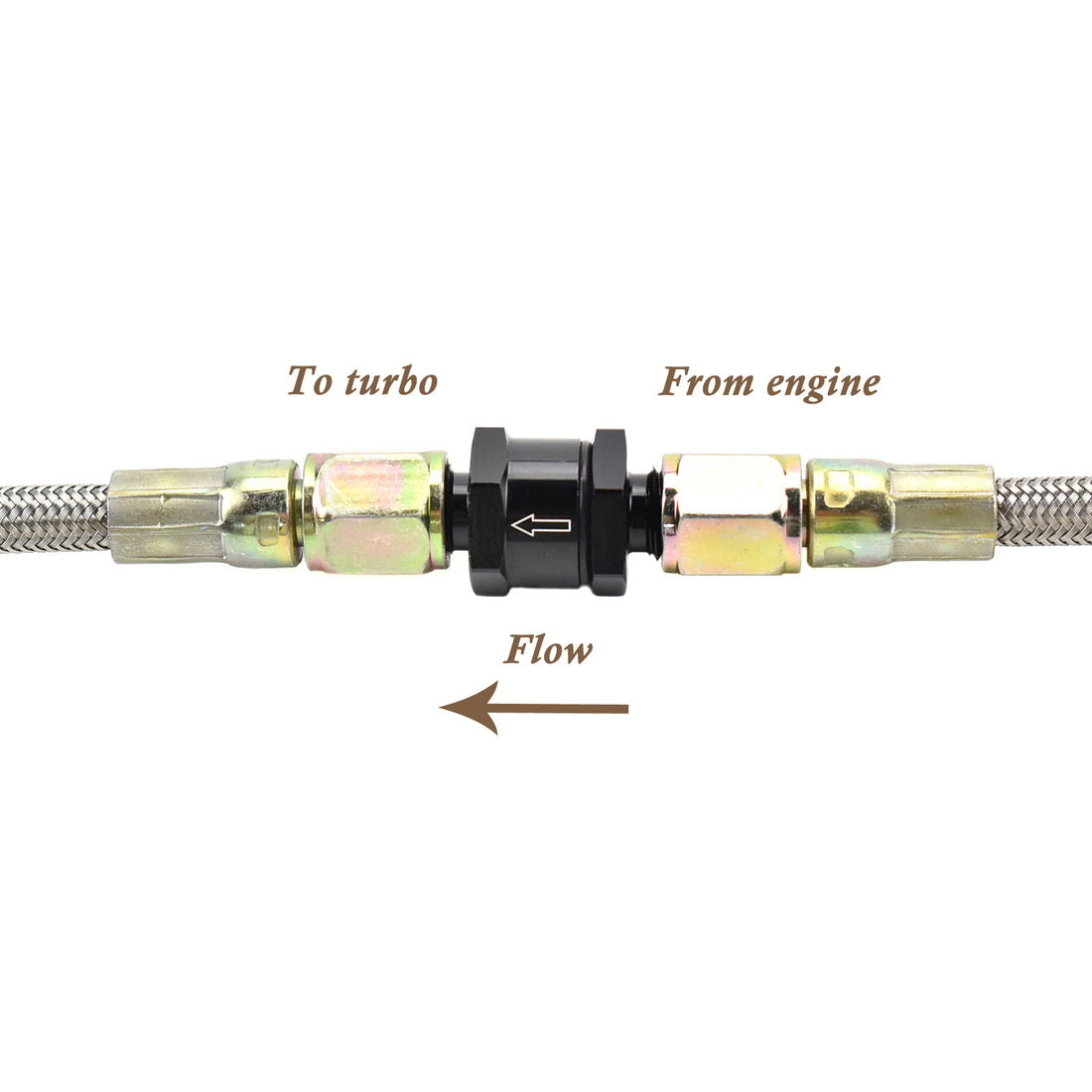

- -4 AN Oil filter

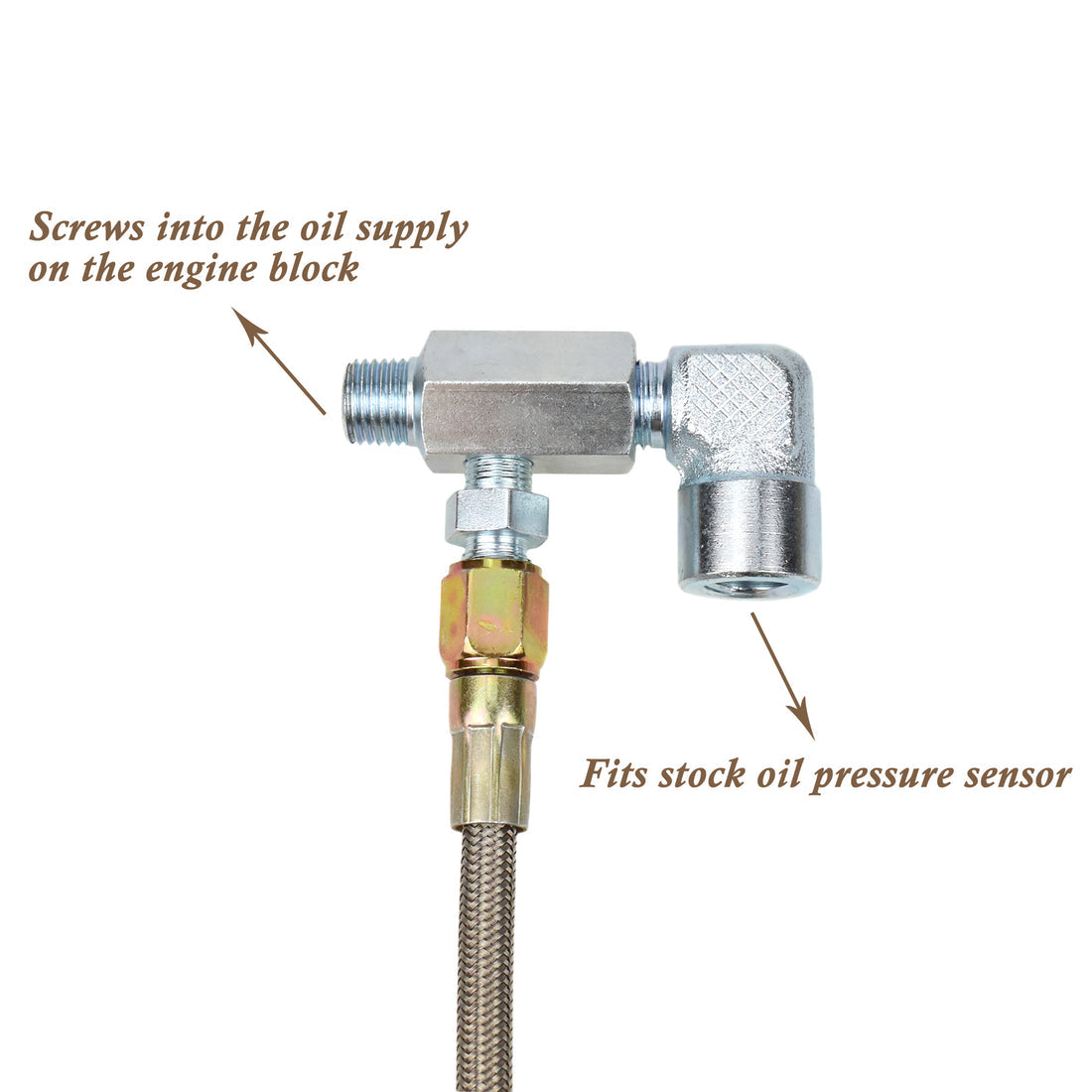

- T-Fitting to adapt the factory pressure sensor
- Oil drain hose
- Oil drain flange - turbo side
- Oil drain flange - engine side
- Oil drain gasket (1mm thickness)
- 45 degree swivel fitting
- Clamps
- Bolts
