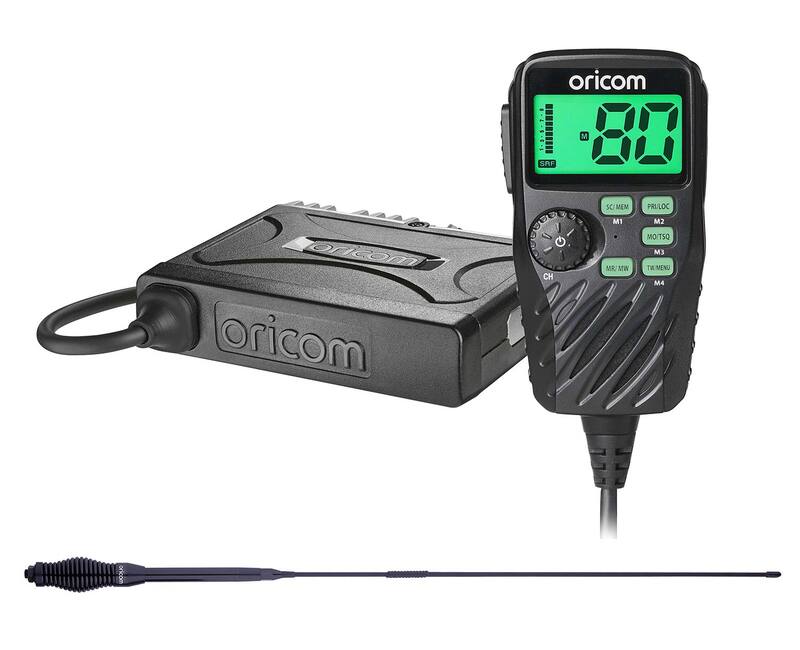

UHF390PK Oricom Compact 5w UHF CB Radio Including ANU230 Antenna

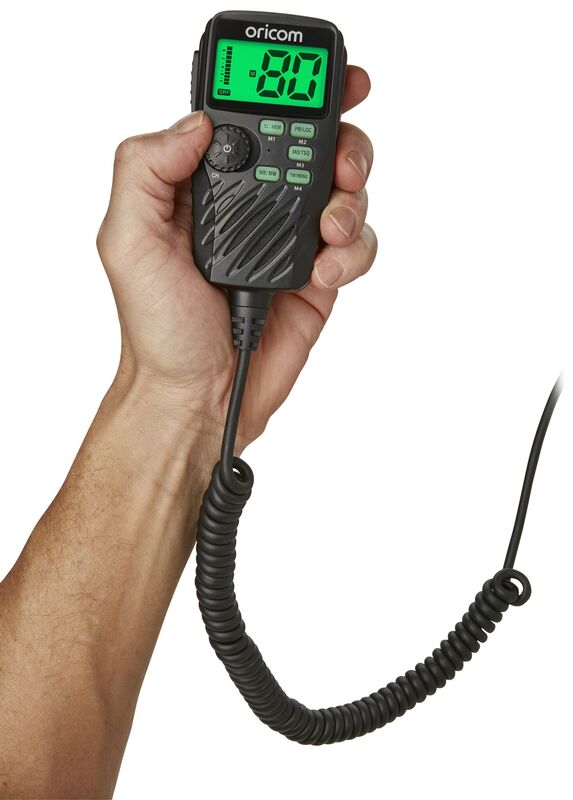

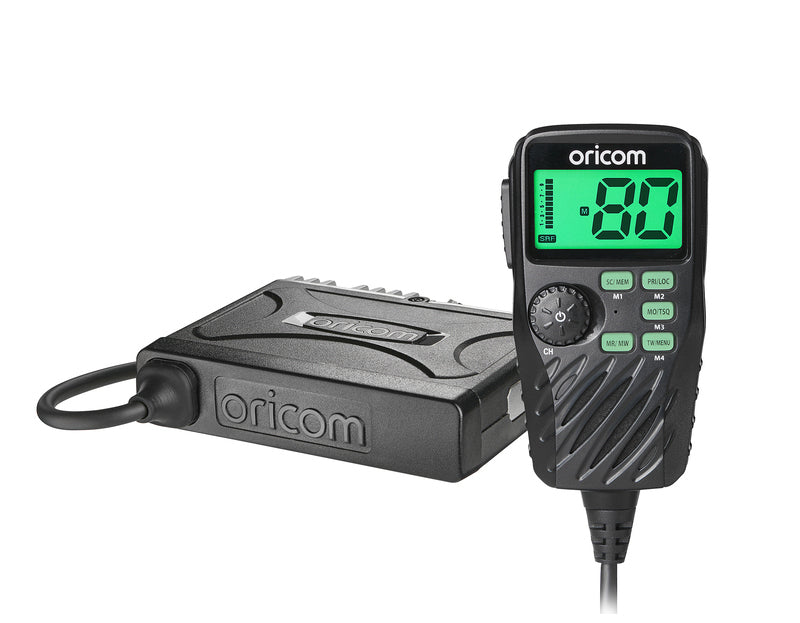

All of the UHF390's radio controls are located in the microphone. There is no need for a head unit to be displayed. With this radio, you'll experience awesome sound quality. The integrated speaker in the controller mic works with the transceiver speaker. Great volume too.
UHF390 Key Features
- 5 watt (max TX power)
- Heavy duty controller speaker microphone
- Rugged micro size transceiver
- Large easy to read LCD display
- Automatic Level Control (ALC) for consistent audio levels
- 38 CTCSS and 104 DCS codes
- Duplex (range extender)
- Open/Priority scan
- Priority channel
- Tri colour backlit LCD display (Amber/Red/Green)
- 3.5mm external speaker jack
- Designed for Australian conditions. Made in Korea.
ANU230 Key Features
- 6.5dBi ground independent antenna
- Pre-tuned to UHF CB Frequency
- 680mm fiberglass whip
- Heavy duty spring base
- 4.5m Low-loss coaxial cable
- Includes 3 Year Warranty
Specifications
UHF390
|
Compliance
|
AS/NZS 4365:2011
|
|
Frequency Range TX/RX
|
476.425 - 477.4125 MHz
|
|
Number of TX/RX Channels
|
80 UHF CB (75 Voice Channels)
|
|
Channel Spacing TX/RX
|
12.5KHz
|
|
Operating modes
|
Simplex, Repeater TX offset (+750kHz)
|
|
Scanning Speed
|
130 msec per channel
|
|
Antenna Impeadance
|
50 Ohms
|
|
Operating Volts nominal
|
13.8 VDC
|
|
Operating Volts Range
|
10 to 15 VDC
|
|
Over Voltage Protection
|
Voltage regulator
|
|
Over Current Protection
|
2 Amp fuse
|
|
Reverse Polarity Protection
|
Shunt diode
|
|
Frequency Stability
|
+/- 2.5ppm
|
|
Transmitter
|
|
|
RF Output Power
|
Nominal 5watts
|
|
Modulation
|
F3E (FM)
|
|
Maximum Deviation
|
2.5kHz
|
|
Spurious Emissions
|
< -70 dBm
|
|
TX Audio pre-emphasis
|
+ 6dB/octave from 300Hz to 3kHz
|
|
Current Consumption during TX
|
1.5 Amps with 50 Ohm antenna termination
|
|
Receiver
|
|
|
Circuit Type
|
Direct conversion by Single DSP chip
|
|
IF Frequencies
|
IF = 137MHz
|
|
Maximum useable sensitivity
|
Less than -122dBm at 12dB SINAD
|
|
Audio Output Power
|
3 Watts Maximum
|
|
RX Audio de-emphasis
|
-6dB/octave 300Hz to 3kHz
|
|
|
|
|
Mechanical
|
|
|
Transceiver Dimensions
|
85 (d) x 102 (w) x 27 (h) mm
|
ANU 230
- 6.5dBi ground independant UHF CB Antenna
- elevated feed
- heavy duty barrel spring base
- fiberglass whip
- finished in black powder-coating
Note: the ANU230 allows for a variety of mounting options for bullbars. A specific bracket will be required depending on the mounting option chosen (bracket not supplied).
KEY SPECIFICATIONS
| SKU | UHF390TP |
| Brand | Oricom |
| Shipping Weight | 1.000000kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.070m |
| Shipping Length | 0.620m |
| Shipping Cubic | 0.009114000m3 |
