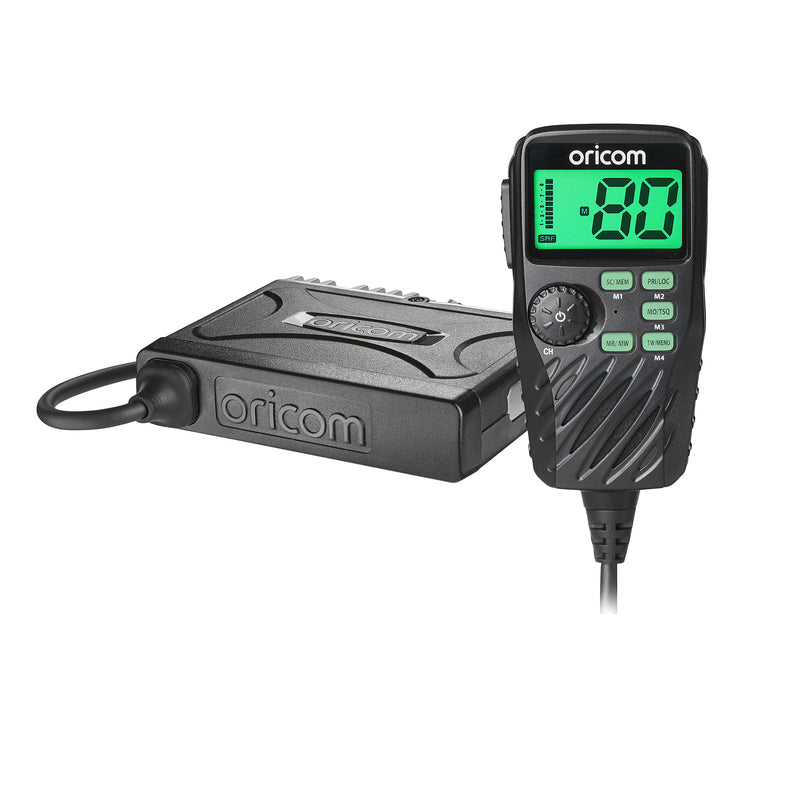

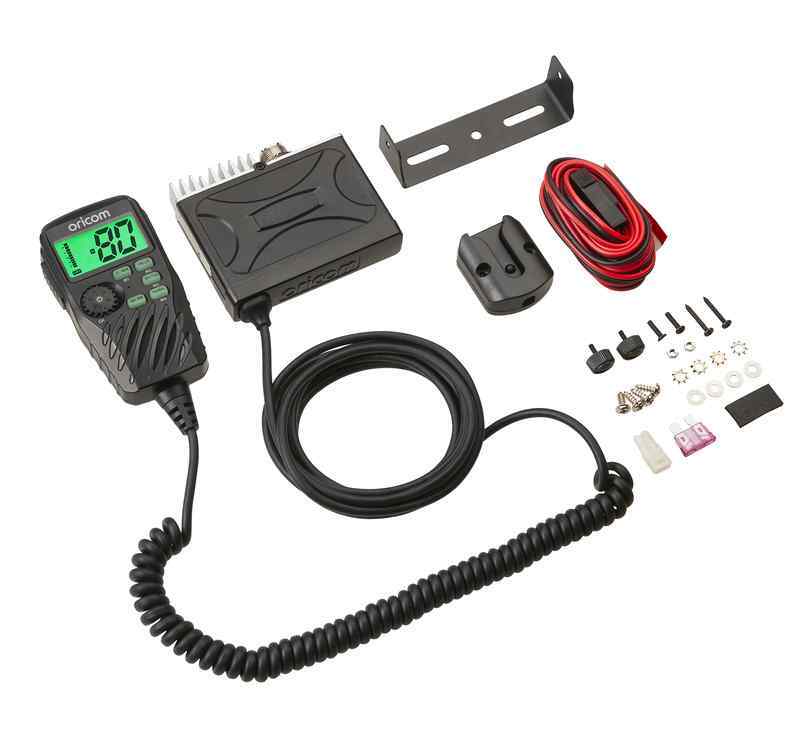

UHF390P Oricom Compact 5w UHF CB Radio
All of the UHF390's radio controls are located in the microphone. There is no need for a head unit to be displayed. With this radio, you'll experience awesome sound quality. The integrated speaker in the controller mic works with the transceiver speaker. Great volume too.
UHF390 Key Features
- 80 Channels
- Heavy duty controller speaker mic
- Ultra compact transceiver
- Rotary volume and channel knob
- Wide band scanner (400-512MHz)
- 5 watt (max TX power)
- 200 user programmable receive only channels
- 5 digit Selcall ID with alpha display
- 38 CTCSS and 104 DCS
- Duplex (range extender)
- Open/Instant/Priority Scan

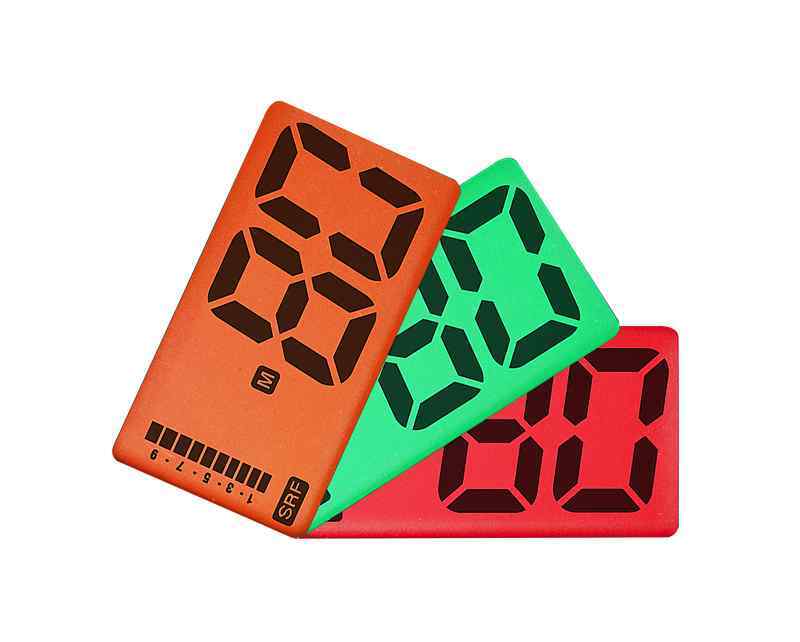

- Large, easy to read display
- Includes 5 Year Warranty
Specifications
UHF390
|
Compliance
|
AS/NZS 4365:2011
|
|
Frequency Range TX/RX
|
476.425 - 477.4125 MHz
|
|
Number of TX/RX Channels
|
80 UHF CB (75 Voice Channels)
|
|
Channel Spacing TX/RX
|
12.5KHz
|
|
Operating modes
|
Simplex, Repeater TX offset (+750kHz)
|
|
Scanning Speed
|
130 msec per channel
|
|
Antenna Impeadance
|
50 Ohms
|
|
Operating Volts nominal
|
13.8 VDC
|
|
Operating Volts Range
|
10 to 15 VDC
|
|
Over Voltage Protection
|
Voltage regulator
|
|
Over Current Protection
|
2 Amp fuse
|
|
Reverse Polarity Protection
|
Shunt diode
|
|
Frequency Stability
|
+/- 2.5ppm
|
|
Transmitter
|
|
|
RF Output Power
|
Nominal 5watts
|
|
Modulation
|
F3E (FM)
|
|
Maximum Deviation
|
2.5kHz
|
|
Spurious Emissions
|
< -70 dBm
|
|
TX Audio pre-emphasis
|
+ 6dB/octave from 300Hz to 3kHz
|
|
Current Consumption during TX
|
1.5 Amps with 50 Ohm antenna termination
|
|
Receiver
|
|
|
Circuit Type
|
Direct conversion by Single DSP chip
|
|
IF Frequencies
|
IF = 137MHz
|
|
Maximum useable sensitivity
|
Less than -122dBm at 12dB SINAD
|
|
Audio Output Power
|
3 Watts Maximum
|
|
RX Audio de-emphasis
|
-6dB/octave 300Hz to 3kHz
|
|
|
|
|
Mechanical
|
|
|
Transceiver Dimensions
|
85 (d) x 102 (w) x 27 (h) mm
|
KEY SPECIFICATIONS
| SKU | UHF390 |
| Brand | Oricom |
| Shipping Weight | 1.000000kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.070m |
| Shipping Length | 0.620m |
| Shipping Cubic | 0.009114000m3 |
