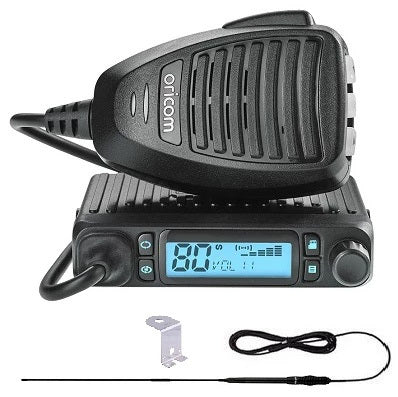

VALUE PACK ORICOM UHF DTX4300 UHF RADIO + ANU220 + BR100 Bracket
VALUE PACK ORICOM UHF DTX4300 UHF RADIO + ANU220 + BR100 Bracket
  • Load image into Gallery viewer, VALUE PACK ORICOM UHF DTX4300 UHF RADIO + ANU220 + BR100 Bracket
  • Load image into Gallery viewer, VALUE PACK ORICOM UHF DTX4300 UHF RADIO + ANU220 + BR100 Bracket

VALUE PACK ORICOM UHF DTX4300 UHF RADIO + ANU220 + BR100 Bracket

Regular price
$413.08
Sale price
$413.08
Regular price
Sold out
Unit price
per
Tax included.

VALUE PACK ORICOM UHF DTX4300 UHF RADIO + ANU220 ANTENNA + BR100 Bracket

DTX4300

The DTX Series of UHF CB Radios are the first and best of their breed and have become an essential communication tool for on and off the road.

The Oricom DTX4300 Micro Size 5-Watt UHF CB radio is a well-crafted unit, packing a real punch for its ultra-compact size, and is one of the smallest fixed mount UHF CB radios on the Australian market.

The unit has a powerful 5-Watt operation, 80 channels with 38 CTCSS and DCS Codes, 3 memory groups and smart fast scanning, ensuring you’re always connected.

  • Ultra compact micro size
  • 96 colour LCD backlit display
  • Flip LCD function
  • Over voltage alert function
  • Heavy duty microphone
  • 3 memory groups
  • Smart fast scanning (priority/
  • group memory/ group tone scan)
  • Back light brightness (4 pre-set levels plus auto)
  • Rotary volume/channel and squelch control
  • Duplex
  • 38 CTCSS & DCS codes
  • Diecast metal chassis
  • Auto power off (off/1h/2h/4h)
  • 3.5mm external jack (for optional external speaker)
  • Designed and engineered in Korea
  • Requires antenna (not supplied)

ANU220

6.5dBi Antenna with Heavy Duty Barrel Spring with Elevated Feed and Fiberglass Whip

  • 6.5dBi Antenna
  • Elevated feed
  • Coax. Lead: 4.2m
  • Black
  • Antenna Length: 0.88m

BR100

From off-road recreation to communication in the transport industry, our range of Oricom Genuine UHF Accessories are built with quality, performance and price in mind.

Select an antenna to best suit your vehicle and driving conditions then choose from our range of bracket options to suit your preferred mounting position.

The BR100 “Z” antenna bracket is suitable for boot or bonnet gutter mount.

Specifications
GENERAL DTX4300
Compliance AS/NZS 4365:2011
Frequency Range TX/RX 476.425 - 477.4125 MHz
Number of TX/RX Channels 80 UHF CB Channels (75 voice)
Channel Spacing TX/RX 12.5KHz
Operating  modes Simplex, Repeater TX offset (+750KHz)
Scanning Speed 50 msec per channel
Antenna  Impedance 50 Ohms
Operating Volts nominal 13.8VDC to 28VDC
Operating Volts Range 10 to 30VDC
Over Voltage Protection Diode and Voltage regulator system
Over Current Protection 2 AMP fuse
Reverse Polarity Protection Shunt diode
Frequency stability +/-  5 ppm
TRANSMITTER
RF Output Power  5 watts max
Modulation F3E(FM)
Maximum deviation  2.5KHz
Spurious Emissions < -30dBm
TX Audio pre-emphasis +6dB/Octave from 300Hz to 3KHz
Current consumption during TX 1.7 AMP with 50 ohm antenna termination
RECEIVER
Circuit Type Dual conversion super heterodyne
Intermediate Frequencies 1st IF: 21.4MHz, 2nd IF: 450KHz for Main RX
Maximum usable sensitivity  - 123dBm for 12dB SINAD (receiver sensitivity)
Audio output power > 2 Watts at 8 ohm load
RX Audio de-emphasis  +6dB/Octave from 300Hz to 3KHz
Signal to Noise Ratio > 40dB
Conducted Spurious Emission  > -57dBm
MECHANICAL
Dimensions (H) X (W) X (D) 22.5 x 100 x 76
Weight 210g transceiver only



KEY SPECIFICATIONS
SKU DTX4300PK
Brand Oricom
Shipping Weight 0.600000kg
Shipping Width 0.160m
Shipping Height 0.060m
Shipping Length 0.230m
Shipping Cubic 0.002208000m3
