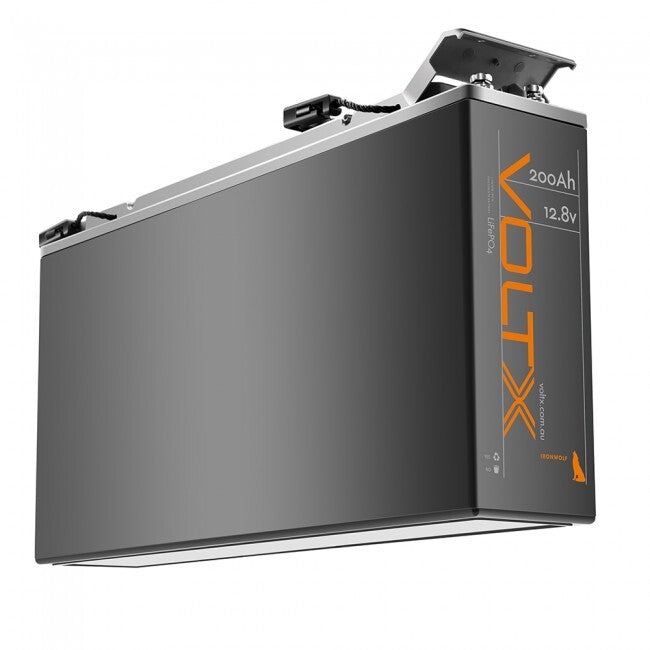

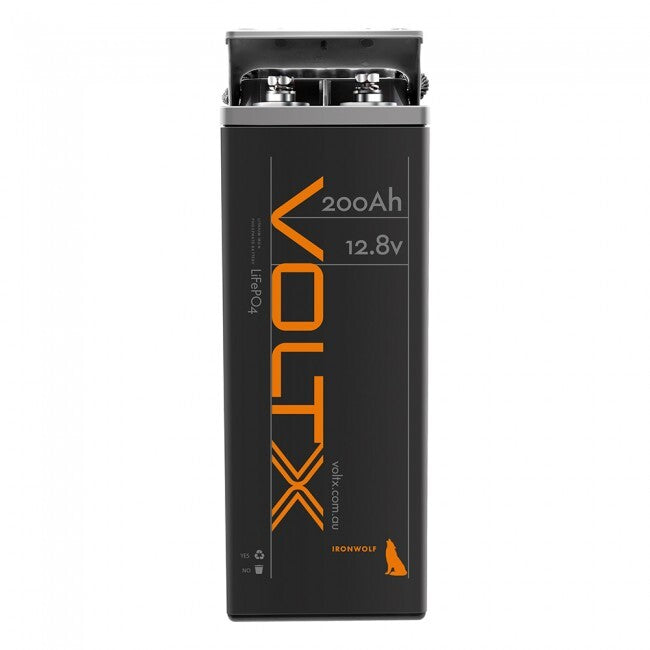

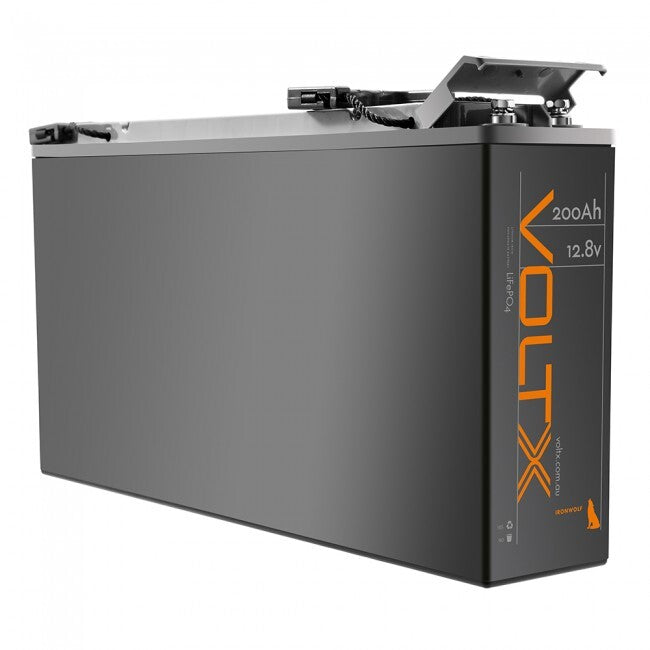

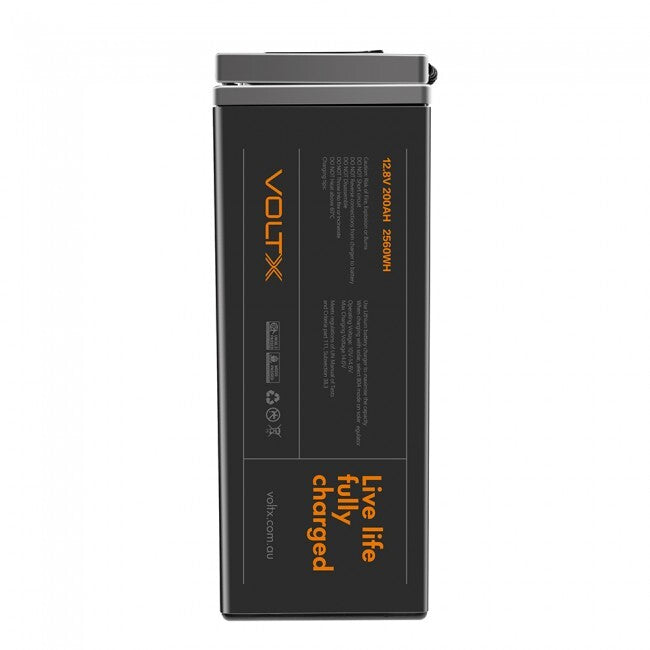

200Ah LiFePo4 Lithium Deep Cycle Battery 12.8V, With BMS
Making sure that you choose the right battery is essential to getting the best out of your camping and outdoor experience.
VoltX Lithium Deep Cycle Batteries offer superior performance and are designed to handle the most extreme Australian conditions. Here are some of the factors to consider when you're choosing an auxiliary battery:
- What appliances and/or accessories do I intend to run?
- What size battery do I need.., i.e., how many Ah?
- Will I install an inverter to operate 240V appliances or is it only to run a fridge and some lighting?
Whichever way you decide to go, our team can help you design a system that's right for you and deliver reliable performance all the time.
VoltX lithium-ion batteries are built using A-grade cells. They are a reliable energy source protected by a high-end BMS. Not only do they deliver a higher energy density and voltage capacity than a lead-acid battery, the OCAM lithium LiFePO4 batteries store 2-3 times the energy of an AGM battery of the same or similar size.
PICK UP & PHONE ENQUIRIES WELCOME
Despatched within 24hrs of payment being received
SPECIFICATIONS:
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah
Charging Voltage: 14.2 - 14.6v
Rated Energy: 2.56KWh
Max. Charging Current: 100A
Max. Discharging Current: 100A
Discharge Cut-off Voltage: 11.2V
Life Cycle (@25℃, 0.5C/0.25C, 80%DOD):i Approx. 2800 Cycles
Internal Resistance Fully Charged@ 25℃ ≤5mΩ
Thermal Management: Nature cooling
Operating Humidity: 60±25%R.H.
Operating Temperature: Charging: 0°C to 50°C
Discharging: -25°C to 65°C
Cell: 3.2V-100Ah
Cells Grouping: 4S2P
Bolt Type: Hexagon
Bolt Material: 304 Stainless Steel
Battery Cells: Prismatici
Series Connection: Yes, max of 6 batteries
Parallel Connection: Yes, max of 6 batteries
DIMENSIONS & WEIGHT:

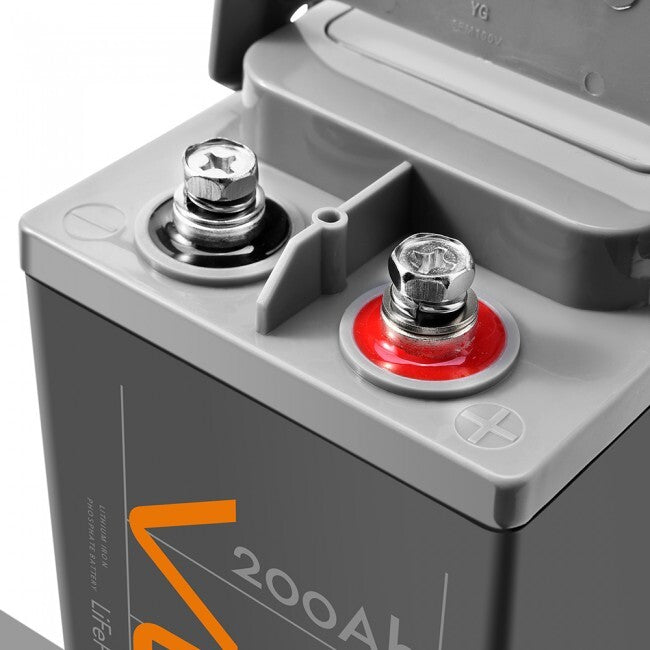

Bolt Terminal Size: M8 (Ø16) x 2.5(H)mm
Dimensions: 552(L) x 110(W) x 295(H)mm
Weight: 19.0kg
| SKU | VX-L-BAT-200-SLM |
| Brand | VoltX |
| Shipping Weight | 24.000000kg |
| Shipping Width | 0.175m |
| Shipping Height | 0.240m |
| Shipping Length | 0.483m |
| Shipping Cubic | 0.020286000m3 |
